Reveal Stratigraphy through Machine Learning

Reveal Stratigraphy

Using the Paradise® AI workbench, geoscientists can generate and analyze seismic data at the sample level, well beyond a wavelet. This powerful capability, along with the application of machine learning to Multi-Attribute Classification, produces profound, sometimes surprising results, particularly the ability to detect features below conventional seismic tuning thickness. Attribute Selection is done through the use of Principal Component Analysis (PCA), and Multi-Attribute Classification is based on the highly robust Self-Organizing Map (SOM) technique, which is applicable with or without well control. These machine learning tools are applicable in both exploration and production.

Schedule a Consultation

Using the Paradise AI workbench, geoscientists can generate and analyze seismic data at the sample level, well beyond a wavelet. This powerful capability, along with the application of machine learning to Multi-Attribute Classification, produces profound, sometimes surprising results, particularly the ability to detect features below conventional seismic tuning thickness. Attribute Selection is done through the use of Principal Component Analysis (PCA), and Multi-Attribute Classification is based on the highly robust Self-Organizing Map (SOM) technique, which is applicable with or without well control. This means these tools in the workbench are appropriate for both exploration and production.

Download Technical Paper

Stratigraphic Analysis ThoughtFlow® in Paradise

Stratigraphic Analysis ThoughtFlow

The Stratigraphic Analysis ThoughtFlow in Paradise allows interpreters to:

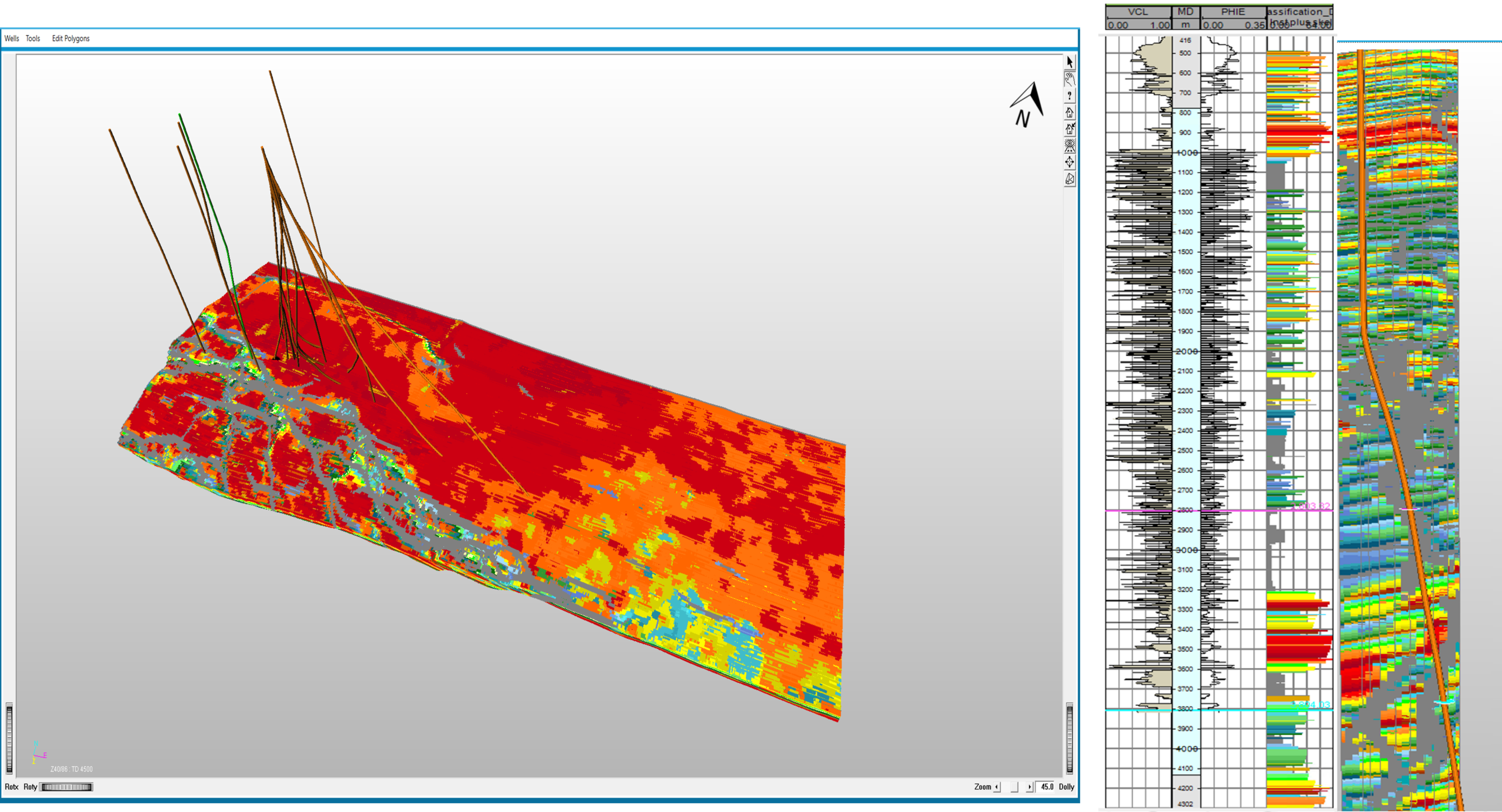

Highlight reservoirs and stratigraphic features at the sample level

Detect thin beds and direct hydrocarbon indicators (DHIs)

Compare machine learning results to well logs to refine results

Multi-Attribute Classification

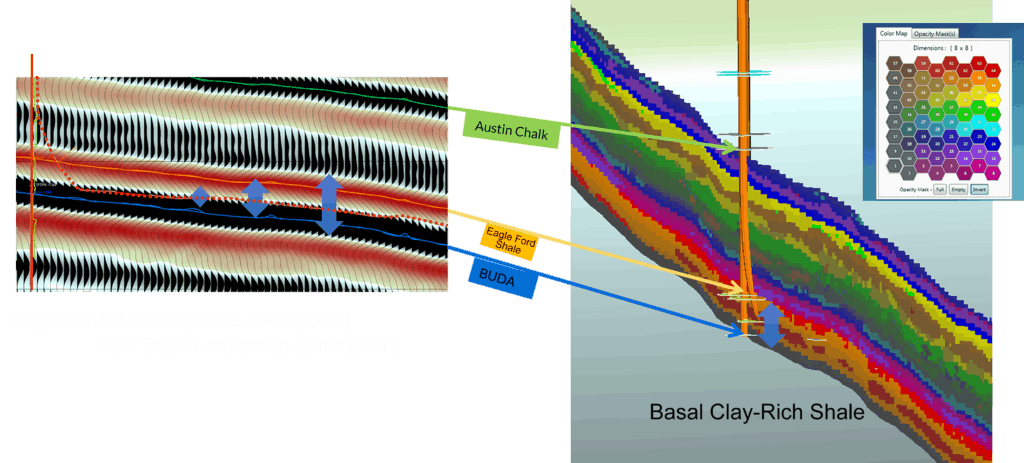

Pictured Above: Resolution comparison between conventional seismic display and a Paradise multi-attribute SOM classification. (left) Seismic amplitude profile through the 6 well and (right) the SOM results of the same profile identifying the Eagle Ford group that comprises 26 sample-based neuron clusters, which are calibrated to facies and systems tracts. The 2D color map displays the associated neuron cluster colors. Seismic data owned by and provided courtesy of Seitel Inc.

An Example: Stratigraphic Analysis Overlain with Fault Detection Results Along the Well Path

A powerful technique for reservoir characterization is overlaying ML Stratigraphic Analysis with Fault Detection, as shown here in a region in the Caspian Sea, per Laudon et al. (2021).

On the right is a SOM that is sculpted on the top of the best section of the reservoir. Note the well is drilled in a small fault compartment. In the vertical view on the right, the well appears to have been drilled down a fault plane (shown in gray). The wells logs are VClay left and PHIE on the right. In the upper part of the well, the log character changes sharply, where the SOM indicates the well penetrated a large fault. In deeper sections of the well, the PHIE curves generally show lower porosity through lengthy fault sections, which are also slightly shalier. There is a significant amount of sand and porosity along the well path; however, the ‘ratty’ appearance in the logs suggests it has been drilled very close to a fault for much of the reservoir section. Source: Laudon, et al., (2021)

(Left) ML Stratigraphic Analysis sculpted through the main reservoir zone. Fault neurons, colored grey, can be seen along the top of the zone. Well A, highlighted in green, was drilled into a fault block. (Right) Well A template with VClay, PHIE, and SOM Neuron Classification index extracted at the well located next to a seismic line along the well path showing the SOM. Faults neurons are colored grey in the template and the seismic section. Source: Laudon, et al., (2021)

Supporting resources on stratigraphic analysis using Paradise

Learn how geoscientists are using the Machine Learning Stratigraphic Analysis in Paradise to generate and analyze seismic data at the sample level, well beyond a wavelet.
Applying Unsupervised Multi-attribute Machine Learning for 3D Stratigraphic Facies Classification in a Carbonate Field, Offshore Brazil
Applying Unsupervised Multi-Attribute Machine Learning for 3D Stratigraphic Facies Classification in a Carbonate Field, Offshore Brazil
Read More
Applying ML Technologies in the Niobrara Formation, DJ Basin, to Quickly Produce an Integrated Seismic Classification Volume
Read More
A Multi-Disciplinary Approach to Establish a Workflow for the Application of Machine Learning for Detailed Reservoir Description
Read More
